UT Drupal Kit 3.20.0 release notes

Release date - September 24, 2024

Contents

Release summary 

The 3.20.0 release is part of the Drupal Kit’s normal, bi-monthly maintenance release schedule. In addition to a greater than usual number of visual adjustments detailed below, developers maintaining existing sites should note two main changes:

This release updates Drupal core to version 10.3. This is the final feature release of Drupal 10. Changes included in 10.3 should not require action for developers updating sites. However, sites must update to 10.3 before updating to Drupal 11. Our initial timeline for updating the Drupal Kit to Drupal 11 is early to mid 2025, so there should be ample time to update to this release before updating to Drupal 11.
This release relocates all CSS associated with the Forty Acres theme into the forty_acres package. Previously, styling for content components like Featured Highlight and Promo Unit were located in the installation profile (utdk_profile), and styling for the News, Event, and Profile add-ons were located in those add-ons’ packaging. The rationale for this change is to consolidate the Forty Acres look and feel so that an eventual replacement theme can be introduced without style conflicts. This relocation will not affect the look and feel of sites that use Forty Acres theme or a sub-theme of it. If you have a site that uses a theme that is not based on Forty Acres, you may need to add legacy CSS to your theme. Reach out to drupal-kit-support@utlists.utexas.edu for more detail.
Legacy code has been removed from the upstream’s composer.json file. Developers will likely need to perform merge resolution on the file during this update; for developers updating via Pantheon, this should simply mean using the “Auto resolve conflicts” checkbox under the “Update options” dropdown.

Visual changes 

Release 3.20.0 includes visual changes that may affect content on existing sites. These changes are described below, with before/after examples.

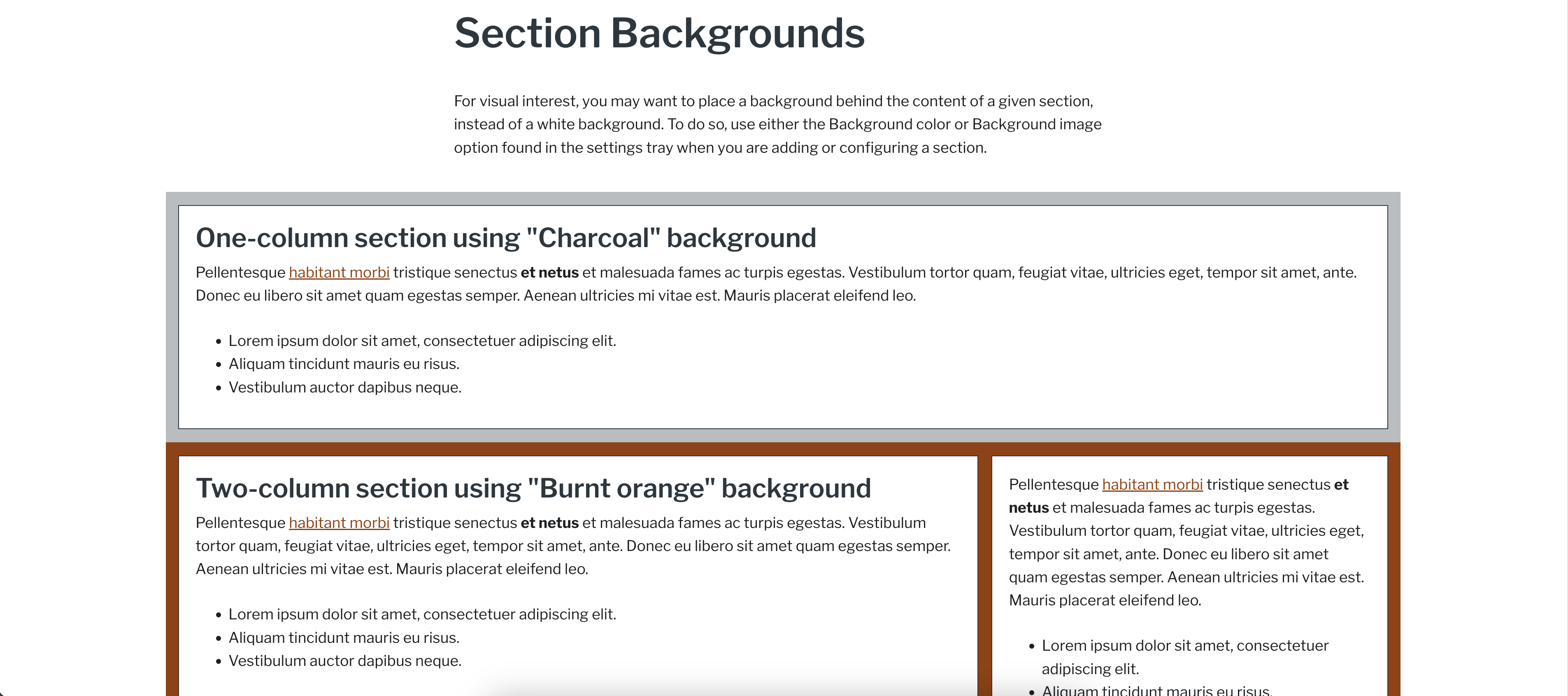

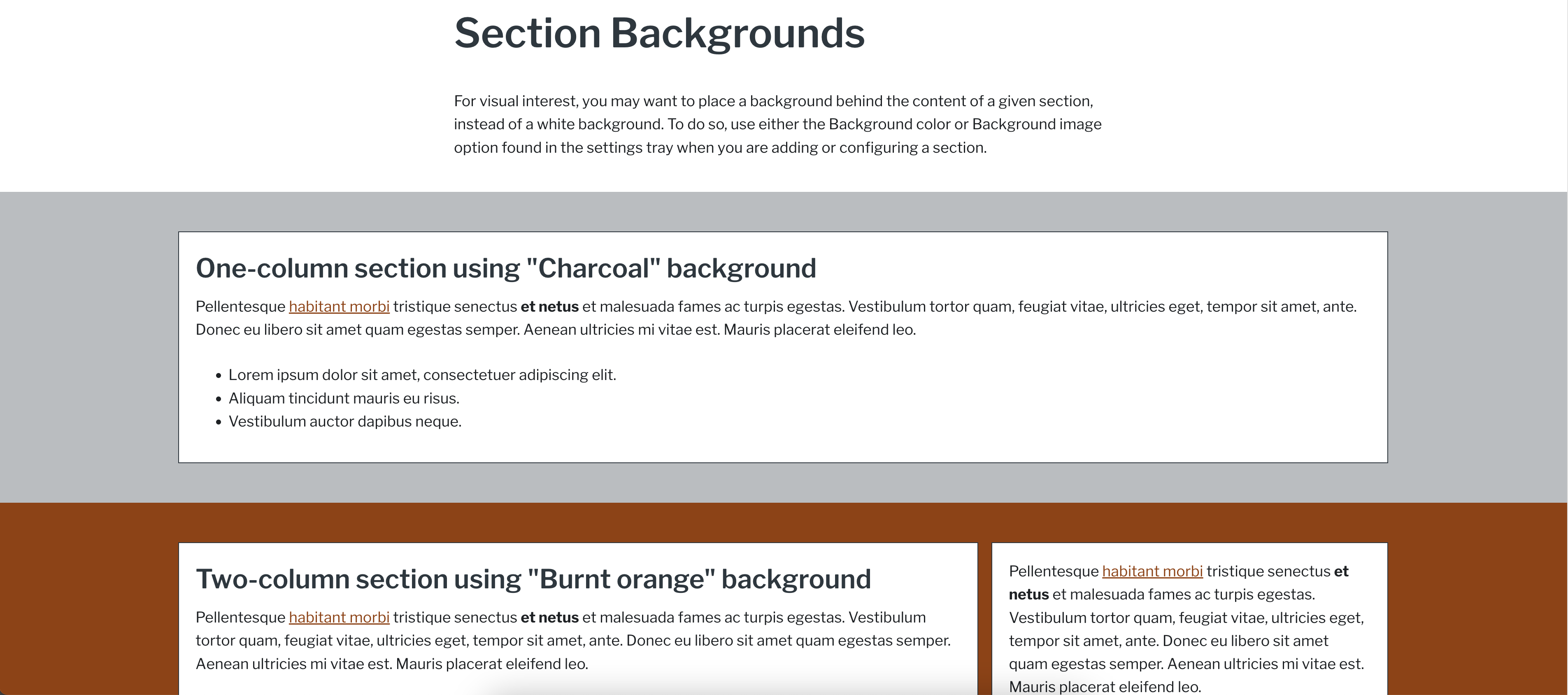

Section backgrounds now display full-width for all content widths 

This change affects all new and existing Flex Page sections where a background image or color has been added. Previously, these background accents were limited to displaying as a margin around content. Now the background accent fills the width of the screen viewport, as shown below.

Full description: https://github.austin.utexas.edu/eis1-wcs/utdk_profile/issues/1929

Before	After

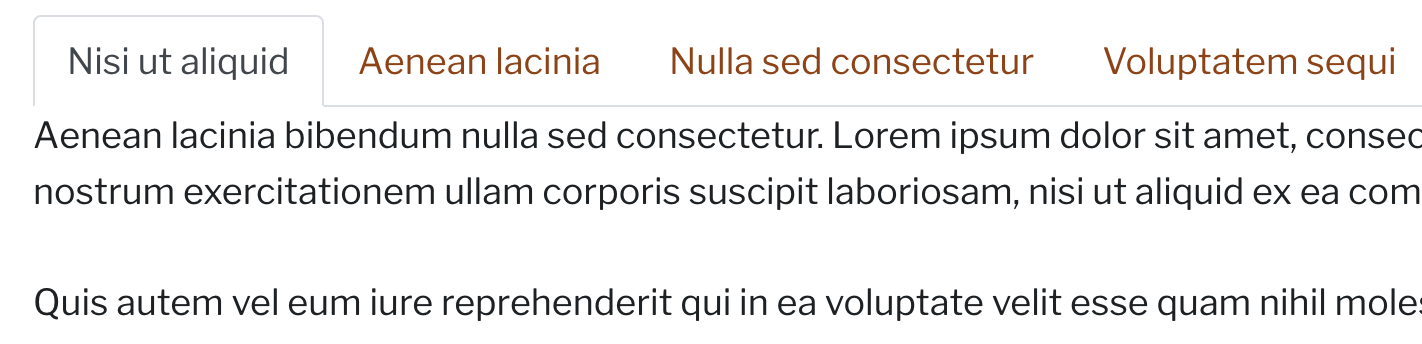

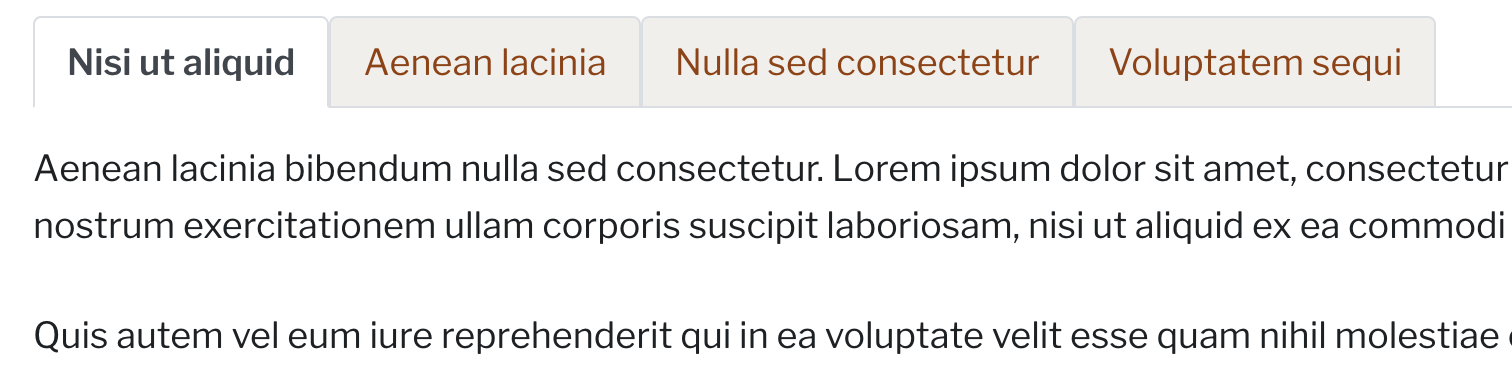

Horizontal tabs now visually associate the tab labels with their content 

Previously, the Flex List Horizontal Tab display used a white background for both active and inactive tabs. Now, inactive tabs display with an off-white color, and the active tab text is boldfaced to better indicate active state.

Full description: https://github.austin.utexas.edu/eis1-wcs/utdk_profile/issues/2025

Before	After

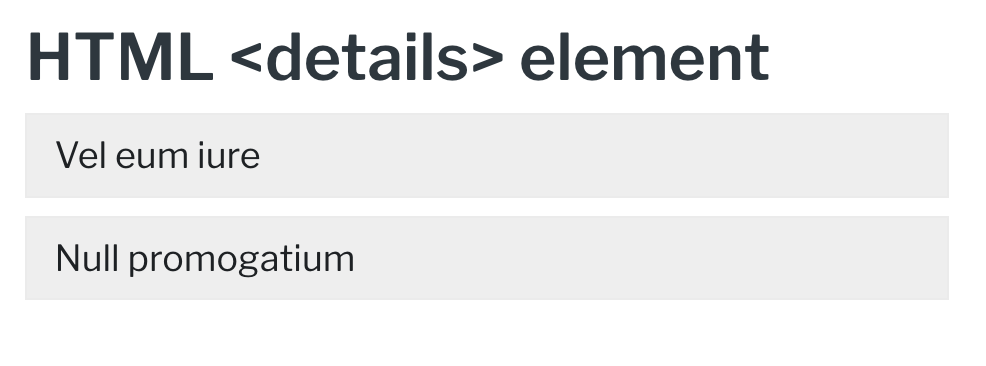

HTML `<details>` elements now display with default “Accordion” design 

Previously, HTML <details> elements entered in rich text areas displayed with a basic collapse indicator on a gray background. Now they automatically display with the same burnt-orange styling of the Flex List’s Accordion design.

Full description: https://github.austin.utexas.edu/eis1-wcs/forty_acres/issues/610

Before	After

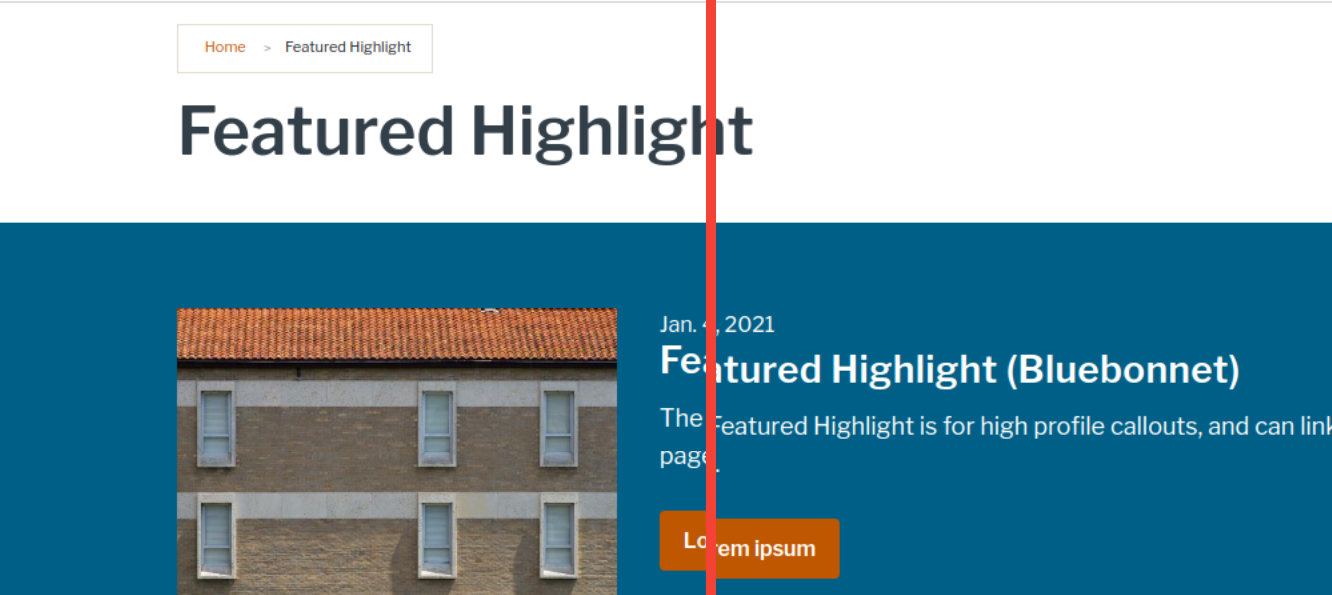

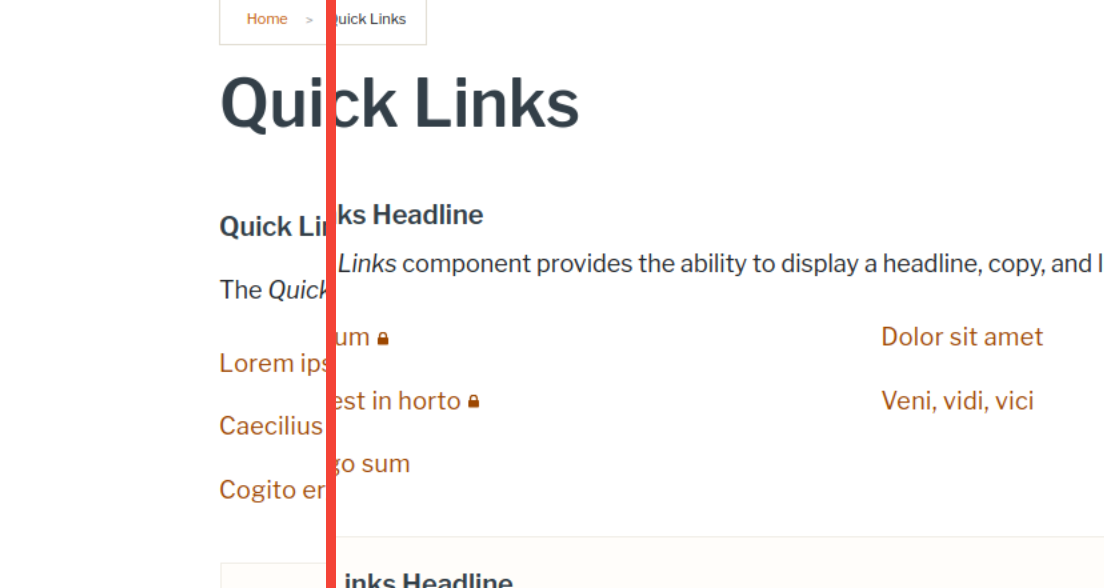

Component headlines now have equal padding and line height 

Previously, different Block types headline fields displayed with divergent padding. In this release, that padding is normalized across components so that items placed side-by-side will align vertically.

Issues:

Example 1	Example 2	Example 3

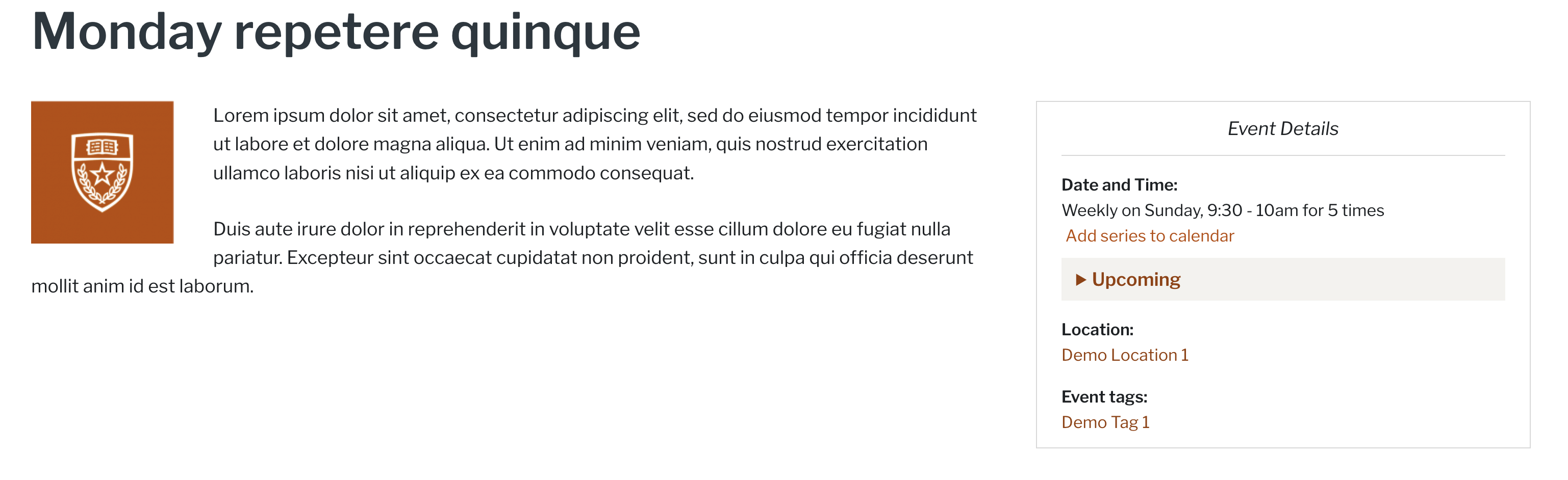

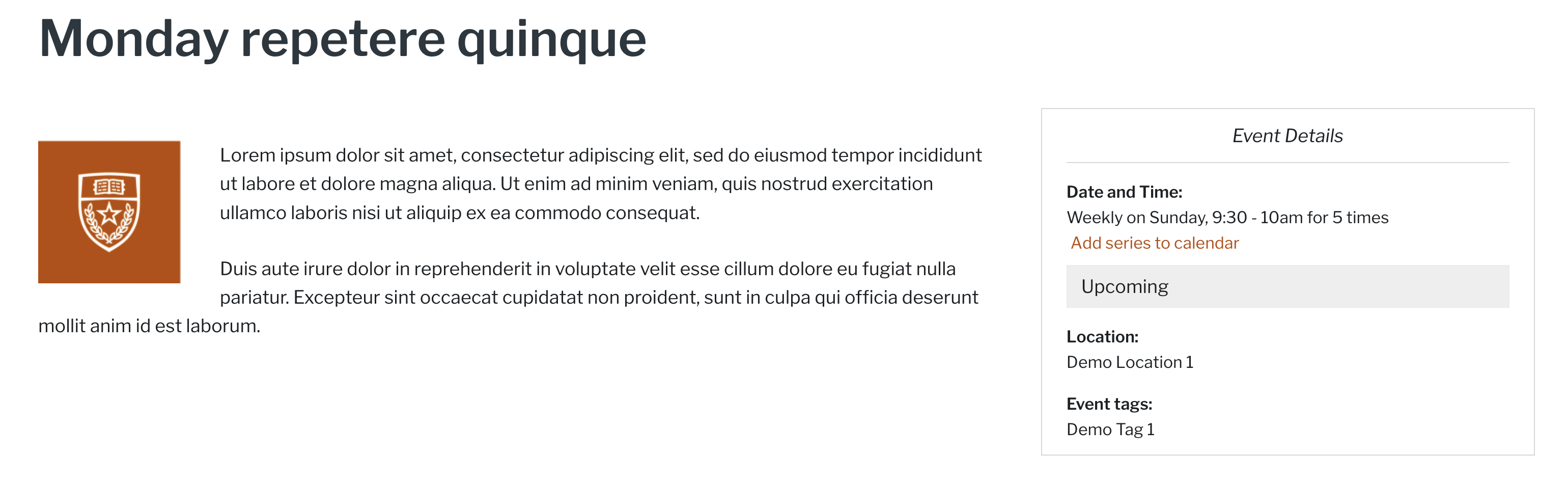

Event pages now link related events by type and location 

On individual event pages, if the event has been tagged with an Event Type or Event Location, it now links to other upcoming events with the same tags.

Full description: https://github.austin.utexas.edu/eis1-wcs/utevent/issues/326

Before	After

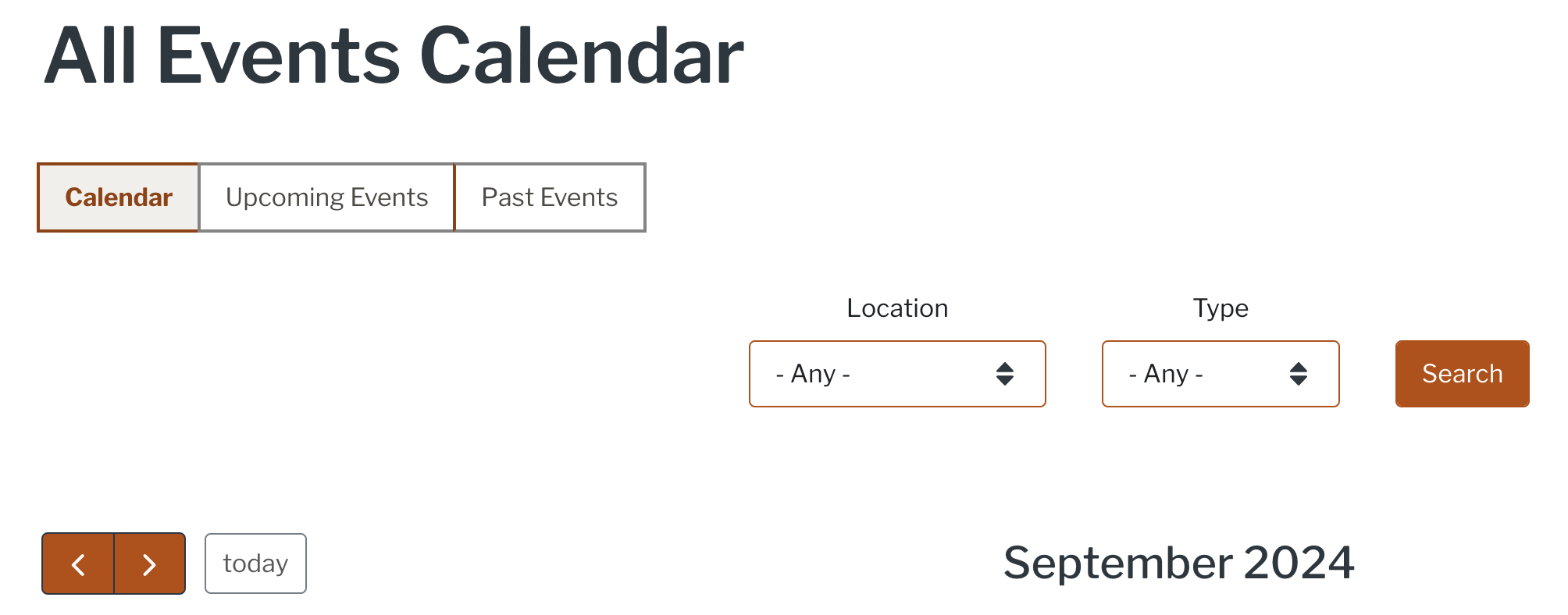

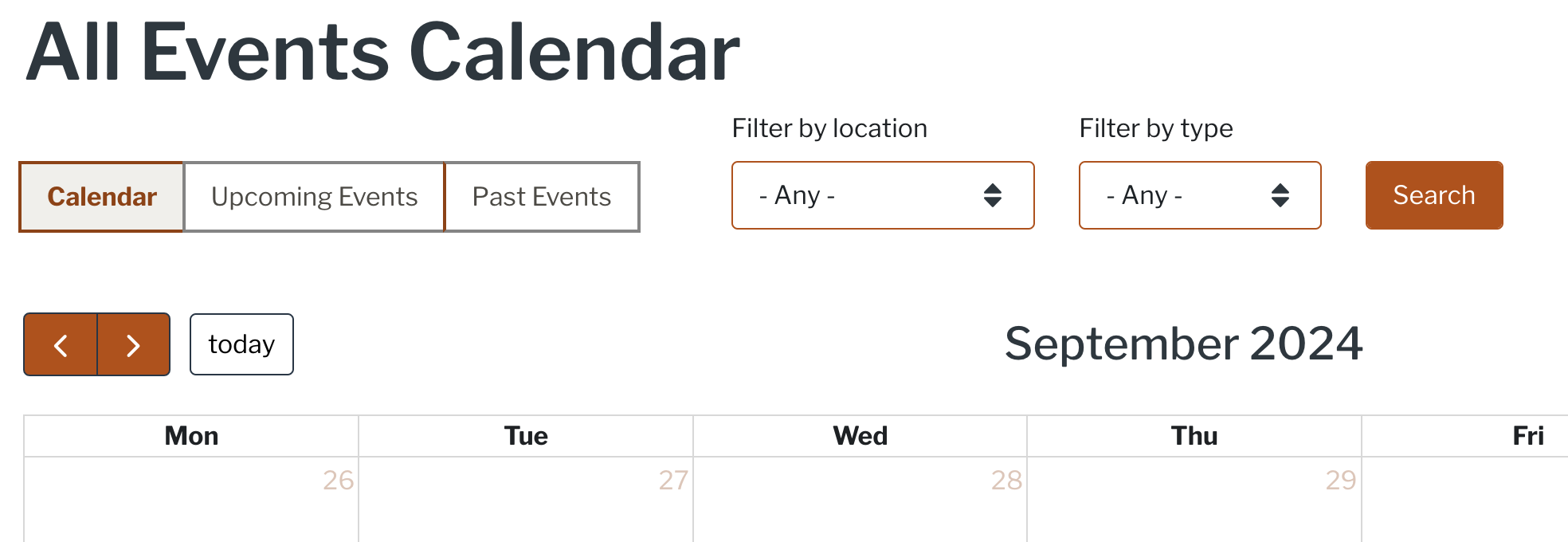

Event listing pages have relocated filters adjacent to buttons 

Previously, on large screens, event listing filters displayed below the Calendar/Upcoming Events/Past Events buttons. Now they are adjacent. Additionally, these items stack more uniformly on small screens.

Full description: https://github.austin.utexas.edu/eis1-wcs/forty_acres/issues/634

Before	After

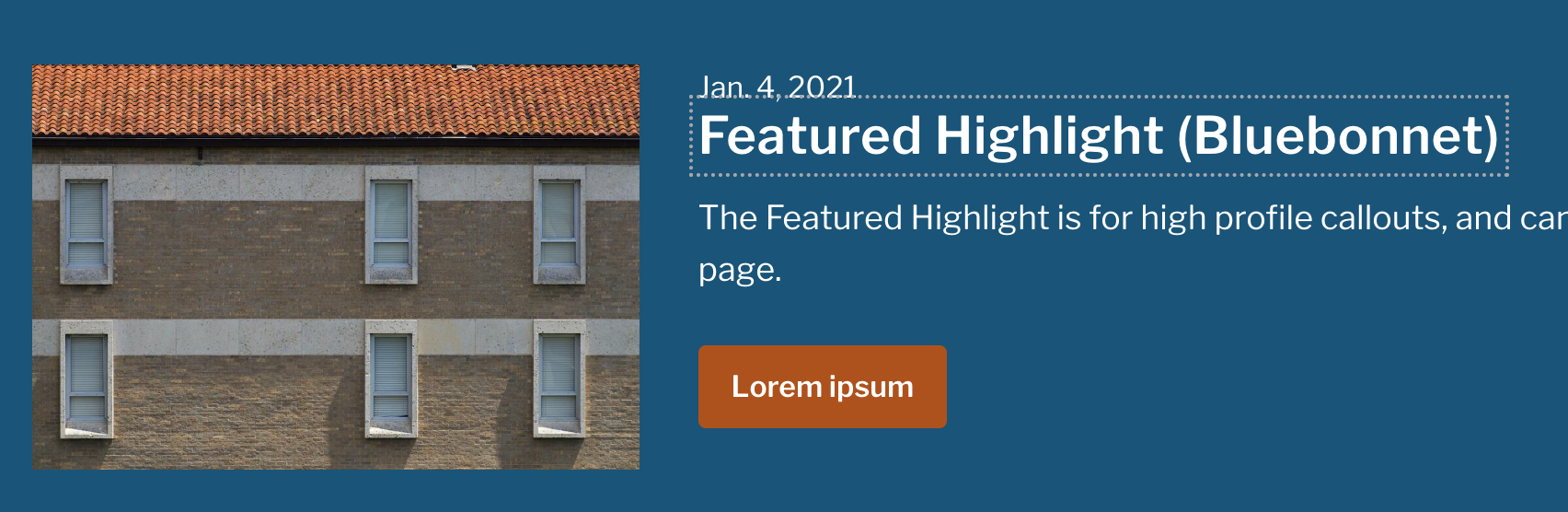

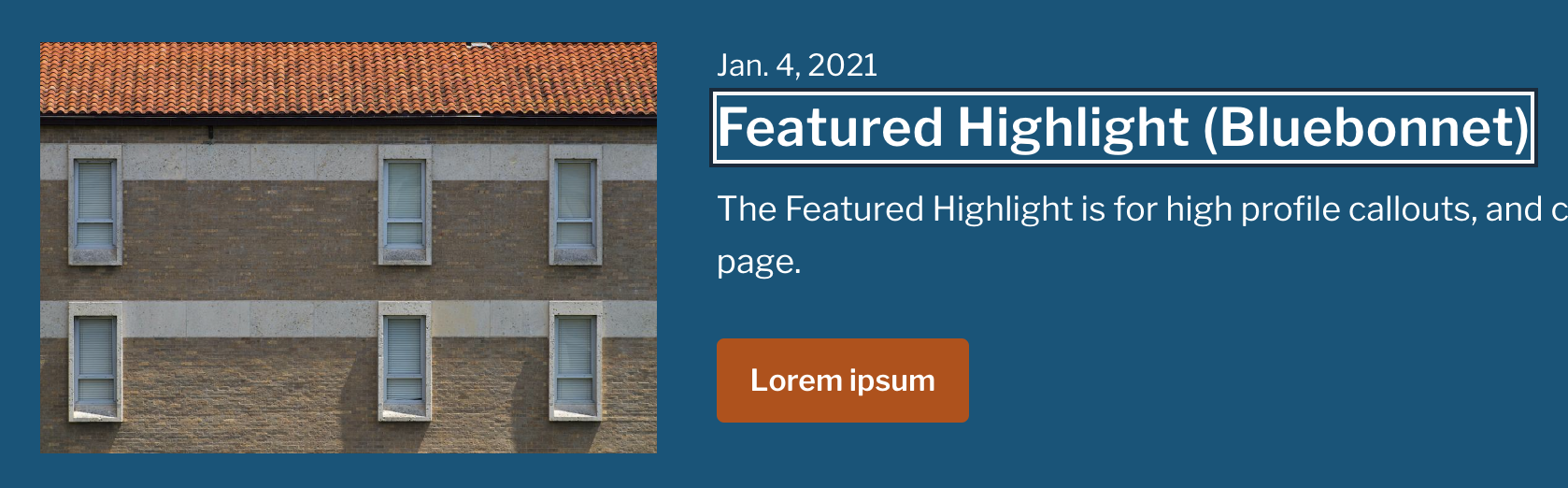

Keyboard navigation focus indicator has improved color contrast 

Users navigating via keyboard will now see a focus indicator that has higher contrast than previous, on both light and dark backgrounds.

Full description: https://github.austin.utexas.edu/eis1-wcs/forty_acres/issues/403

Before	After

Copy text font size has been standardized 

There were some discrepancies in the size of “copy” text across components and displays. This release makes that font size consistent. No visual screenshot is provided for this change. Full description: https://github.austin.utexas.edu/eis1-wcs/forty_acres/issues/431

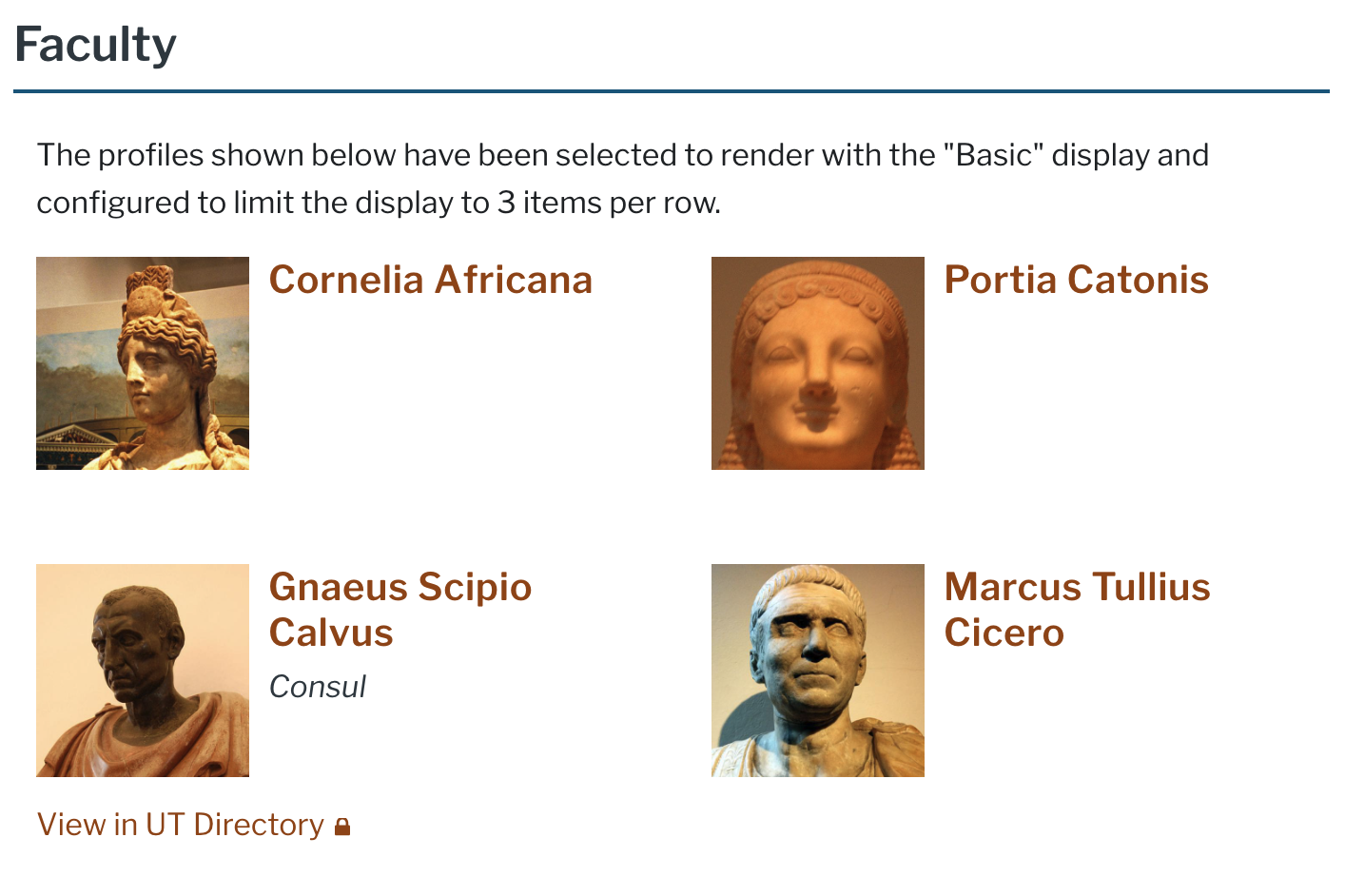

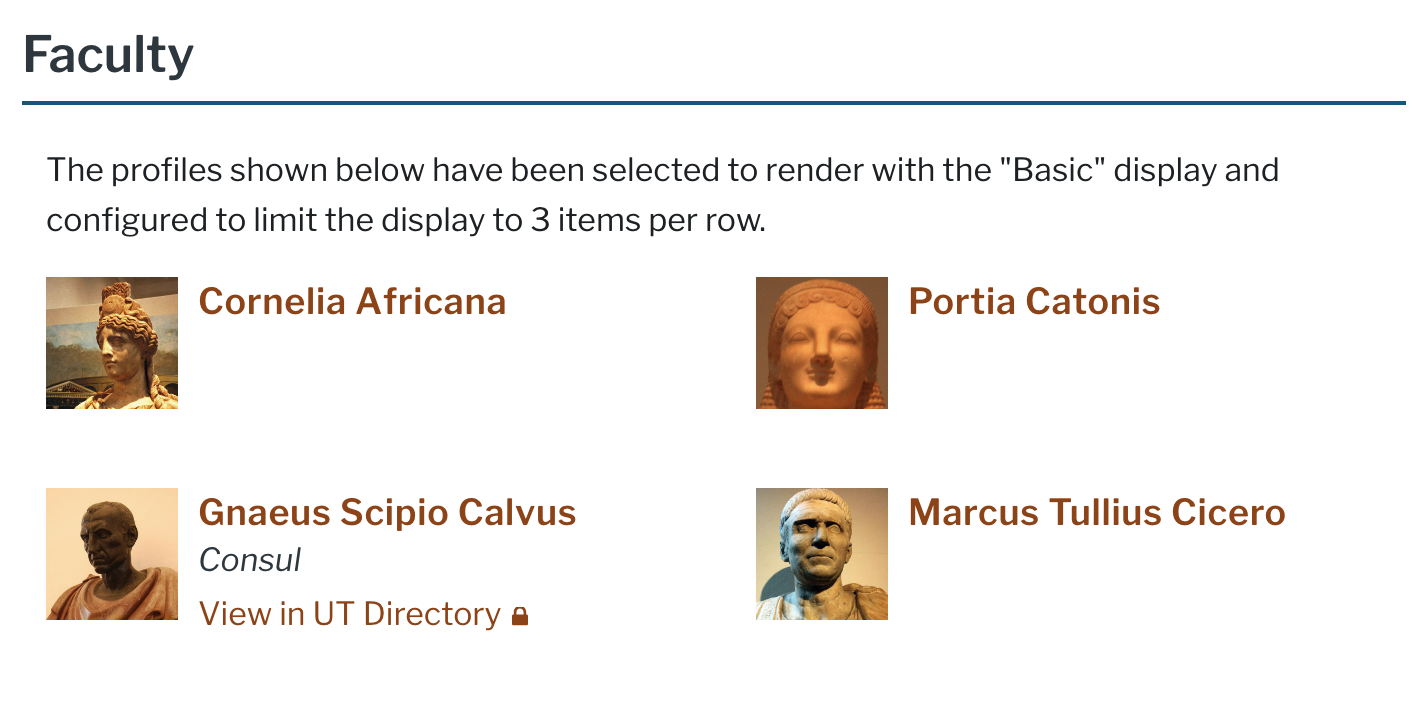

Profile (People) Listings using the “Basic” display have been improved 

Previously, the “Basic” display for Profiles showed very small thumbnail images with non-wrapping text. This release improves this display at all screen widths, making the images the same size as those used in the “Prominent” display, and fitting text more appropriately around the image.

Full description: https://github.austin.utexas.edu/eis1-wcs/utprof/issues/286

Before	After

Additional developer callouts 

The Forty Acres theme now provides a default look and feel for search facets. Developers with sites which already have customized search facets displays should review the output as part of this update to ensure that the new defaults do not adversely affect customizations.
The robots.txt file has received some minor changes. Developers who have modified the robots.txt file should review the file after update to ensure that any still relevant modifications have not been overwritten.
Drupal user accounts now have the ability to display the user’s “real name” instead of the Drupal account username throughout the interface. For sites using Enterprise Authentication, this name will be automatically populated from the University directory. Sites not using Enterprise Authentication can use this feature by manually entering the user’s name in the “Full name” field within the user profile.

Drupal core updates 

https://www.drupal.org/project/drupal/releases/10.3.5 (Bugfix release)
https://www.drupal.org/project/drupal/releases/10.3.4 (Bugfix release)
https://www.drupal.org/project/drupal/releases/10.3.3 (Bugfix release)

Contributed module updates 

Modules included with the UT Drupal Kit installation profile 

Admin Toolbar: from 3.4.2 to 3.5.0
Configuration Update Manager: from 2.0.0-alpha3 to 2.0.0-alpha4
AP Style Date: from 2.0.0 to 2.0.2
Editor Advanced link: 2.2.4 from to 2.2.6
Entity Clone: from 2.0.0-beta6 to 2.1.0-beta1
Google Tag: from 2.0.5 to 2.0.6
Menu Block: from 1.11.0 to 1.13.0
Menu Trail By Path: 2.0.1 from to 2.1.0
Metatag: from 2.0.0 to 2.0.2
Pathauto: from 1.12.0 to 1.13.0
Redirect: from 1.9.0 to 1.10.0
Role Delegation: from 1.2.0 to 1.3.0
Schema.org Metatag: from 3.0.2 to 3.0.3
Security Kit: from 2.0.1 to 2.0.3

Modules included with the News add-on 

Facets: from 2.0.7 to 2.0.8

Modules included with the Event add-on 

Add to Calendar Date Augmenter: from 1.1.1 to 1.2.1
AP Style Date: from 2.0.0 to 2.0.2
Fullcalendar View: from 5.1.14 to 5.2.2
Smart Date: from 4.1.3 to 4.1.6

Modules included with the Profile add-on 

Field Group: 3.4.0 to 3.6.0

All changes since 3.19.1 

UTexas installation profile (25)

Enhancement: Render default utexas_image view mode with sensible image style to avoid super high resolution rendering #957
Task: Replace deprecated @-moz-document Hero Carousel prev/next button display for Firefox #1911
Bug: [Accessibility] Details/summary elements are not navigable by keyboards #2609
Enhancement: Add default values for required Open Graph metatags #2004
Enhancement: Interface for site owners to upload a social sharing photo, with UT default #2005
Task: Grant appropriate user access to Drupal Kit settings #2466
Task: Standardize HTML filtering across single-line text input fields #1445
Task: Remove deprecated twitter_cards_page_url from global metatags #2611
Task: Remove Twitter Profile Widget from codebase #2231
Enhancement: Display users’ real names throughout the administrative interface #848
Enhancement: Remove version numbers on all sub-modules within the kernel #950
Task: Relocate component CSS to Forty Acres #2579
Enhancement: Display section background colors/images full-width at all content widths #1929
Bug: Quick Links items cannot be re-ordered using “Row weights” #2629
Task: Update to url_embed 3.0.0-beta1 #2625
Bug: Options for Background Accents display inconsistently in editing form #2632
Bug: Section background blur effect cannot be deselected #2638
Enhancement: Move social links placeholder help text into description text below input #845
Enhancement: Add confirmation dialog when removing an item from a component #2315
Bug: [Flex list] Horizontal tabs instances can populate empty ID attributes #2604
Task: Relocate utexas_qualtrics_filter to kernel #2622
Task: Update to Drupal 10.3 #2568
Enhancement: Increase top/bottom padding on sections with background accents #2628
Task: Update contributed dependencies #2646
Bug: Roll back responsive_tables_filter to 1.18.0 #2649

Forty Acres theme (12)

Enhancement: Add default styling for facets blocks #377
Task: Standardize line-height for the ut-headline CSS class #599
Task: Normalize padding, margins, & line-height of .ut-headline utility classes #604
Task: Standardize font size across copy fields throughout components #431
Enhancement: Create a two-color focus indicator to ensure sufficient contrast with all components #403
Task: Relocate utnews default theme styling to Forty Acres #631
Bug: “Today” toggle on Calendar view has insufficient color contrast on hover state #632
Task: Relocate utprof default theme styling to Forty Acres #636
Task: Adjust padding for News add-on headline after Forty Acres normalization #639
Task: Improve how buttons stack on mobile screens #633
Task: Relocate event filters adjacent to Calendar/Upcoming/Past events buttons #634
Bug: Event selector inputs can overlap if very long selection options are present #643

Profile add-on (4)

Enhancement: Improve display of profile items in basic view mode lists #286
Task: [UTPROF] - Remove spacing-related styling for .ut-headline from utdk_profile in favor of Forty Acres #406
Task: Relocate default theme styling to Forty Acres #407
Task: Update contributed dependencies #409

News add-on (5)

Task: Convert News teaser variations to separate view modes #233
Task: Wrap author bio around image on narrow screens #327
Task: Remove spacing-related styling for .ut-headline in favor of default theme #331
Task: Relocate default theme styling to Forty Acres #333
Task: Update contributed dependencies #337

Event add-on (7)

Enhancement: Link location and tags to event listing from individual event node #326
Bug: Calendar view changes to full year list on mobile screens #355
Task: Relocate default theme styling to Forty Acres #362
Task: Relocate event filters adjacent to Calendar/Upcoming/Past events buttons (634b) #365
Task: Remove spacing-related styling for .ut-headline in favor of default theme #359
Bug: Set date range separator to use “to” #369
Task: Update contributed dependencies #367

Upstream repository (1)

Task: Remove “upstreamRequire” from root composer.json #159

Role-based access (1)

Enhancement: Add ability to manually set login redirect destination #24
